This vignette demonstrates integrating a split-sample scRNA-seq and CyTOF experiment (Su et al.). The purpose is to improve their individual annotations through a co-clustered annotation. To assimilate scRNA-seq data to CyTOF, we use our own implementation of Single-cell nearest-neighbor pseudobulking (scennep).

Dependencies

library("Seurat")
## Loading required package: SeuratObject
## Loading required package: sp
##
## Attaching package: 'SeuratObject'
## The following objects are masked from 'package:base':
##
##     intersect, t
library("anndata")
##
## Attaching package: 'anndata'
## The following object is masked from 'package:SeuratObject':
##
##     Layers
library("dplyr")
##
## Attaching package: 'dplyr'
## The following objects are masked from 'package:stats':
##
##     filter, lag
## The following objects are masked from 'package:base':
##
##     intersect, setdiff, setequal, union
library("ggplot2")
library("patchwork")
library("cyCombine")
library("cyDefine") # Available at https://github.com/biosurf/cyDefine
##
## Attaching package: 'cyDefine'
## The following object is masked from 'package:cyCombine':
##
##     batch_correct
library("scennep") # Available at https://github.com/shdam/scennep
seed <- 447
mc.cores <- 20

Download data

We got the download instructions from the article’s Data availability section. CyTOF is available on FlowRepository (FR-FCM-Z6ZN) and scRNA-seq data is available on SRA (SRR23497303). Getting the scRNA-seq metadata took some looking around, but direct download links are presented in the code chunks.

Get CyTOF data (FR-FCM-Z6ZN)

FlowRepositoryR might be depricated, so manual download can be required.

if (!require("FlowRepositoryR")) {
  remotes::install_github("jspidlen/FlowRepositoryR")
}


library(FlowRepositoryR)

x <- flowRep.get("FR-FCM-Z6ZN")

x <- download(x)

Get scRNA-seq data (SRR23497303)

Run in bash.

cd ../../../data/pbmc/paired_cytometry_scrna/rnaseq

# SRA Normalized
#wget https://sra-pub-run-odp.s3.amazonaws.com/sra/SRR23497303/SRR23497303
# Raw bam file (used)
wget https://sra-pub-src-1.s3.amazonaws.com/SRR23497303/possorted_genome_bam.bam.1
mv possorted_genome_bam.bam.1 possorted_genome.bam

# Metadata
wget https://ftp.ncbi.nlm.nih.gov/geo/samples/GSM7048nnn/GSM7048570/suppl/GSM7048570%5Fpbmc%5Fseq.h5ad.gz
gunzip rnaseq/GSM7048570_pbmc_seq.h5ad.gz
rm rnaseq/GSM7048570_pbmc_seq.h5ad.gz

Preprocessing

Before I found the preprocessed data from the article, I manually rerun the preprocessing steps. In the end, I used my own preprocessing, but used their filtering. There is commented out code for reusing their expression data, if you are redoing the analysis and want to keep it simple.

scRNA-seq

First, I convert the bam file to fastq in order to reanalyze with Cell Ranger.

module load cellranger/9.0.1
module load bamtofastq/1.3.0

# Get reference
wget "https://cf.10xgenomics.com/supp/cell-exp/refdata-gex-GRCh38-2024-A.tar.gz"
tar -zxvf refdata-gex-GRCh38-2024-A.tar.gz

# Bam to fastq
bamtofastq --nthreads 38 possorted_genome.bam fastq
mv fastq/ES-PBMC-2_HiSeq_MissingLibrary_1_HJK5NBCX2/* fastq/.
rm -rf fastq/ES-PBMC-2_HiSeq_MissingLibrary_1_HJK5NBCX

# Cell Ranger
cellranger count --transcriptome refdata-gex-GRCh38-2024-A --fastqs fastq --localcores 39 --localmem 110 --output-dir cr_out --id cr_paired_rna --create-bam=false

Then, I load the output into Seurat for preprocessing.

seu <- Seurat::Read10X("../../../data/pbmc/paired_cytometry_scrna/rnaseq/cr_out/outs/filtered_feature_bc_matrix")
seu <- CreateSeuratObject(counts = seu, project = "paired_rna", min.cells = 3, min.features = 200)
seu[["percent.mt"]] <- PercentageFeatureSet(seu, pattern = "^MT-")

# VlnPlot(seu, features = c("nFeature_RNA", "nCount_RNA", "percent.mt"), ncol = 3)

(Commented out) I manually set the processing thresholds as follows:

# seu <- subset(seu, subset = nFeature_RNA > 250 & nFeature_RNA < 2800 & percent.mt < 5)
# VlnPlot(seu, features = c("nFeature_RNA", "nCount_RNA", "percent.mt"), ncol = 3)

I reused the filtering and annotation from Su et al.

# Load anndata
adata <- read_h5ad("../../../data/pbmc/paired_cytometry_scrna/rnaseq/GSM7048570_pbmc_seq.h5ad")
#
# # Access the data
# count_matrix <- adata$X
# seu <- Seurat::CreateSeuratObject(t(adata$raw$X))
# seu <- seu[, adata$raw$obs_names %in% rownames(metadata)]
# count_matrix <- count_matrix[adata$raw$obs_names %in% rownames(metadata), ]
metadata <- adata$obs
# gene_info <- adata$var


seu <- seu[, colnames(seu) %in% rownames(metadata)]

# rna <- tibble::as_tibble(count_matrix) |>
#   mutate(cell_id = rownames(count_matrix),
#          celltype = metadata$celltype)

seu <- AddMetaData(seu, metadata)

Visualizing scRNA-seq

set.seed(seed)
# Normalize and PCA
seu <- NormalizeData(seu)
## Normalizing layer: counts
seu <- FindVariableFeatures(seu, selection.method = "vst", nfeatures = 3000)
## Finding variable features for layer counts
seu <- ScaleData(seu)
## Centering and scaling data matrix
seu <- RunPCA(seu)
## PC_ 1
## Positive:  BCL11B, CD247, RORA, IL32, PPP1R16B, TRAC, TC2N, TNIK, RHOH, INPP4B
##     CAMK4, LINC-PINT, ANK3, IL7R, PCED1B, BCL2, TRBC2, THEMIS, RPS12, RPS18
##     LTB, PDE3B, LDHB, CD69, SYTL3, TTC39C, TRBC1, ZEB1, TAFA1, PATJ
## Negative:  FCN1, PLXDC2, LYZ, IFI30, CST3, MNDA, LRMDA, SLC8A1, S100A9, AIF1
##     CLEC7A, NAMPT, LST1, HCK, S100A8, ENSG00000257764, VCAN, CYBB, SPI1, DMXL2
##     CLEC12A, CSTA, SLC11A1, RBM47, CSF3R, IRAK3, CTSS, SERPINA1, NCF2, TNFAIP2
## PC_ 2
## Positive:  BANK1, IGHM, AFF3, FCRL1, LINC00926, CD79A, NIBAN3, COL19A1, IGHD, PAX5
##     MS4A1, EBF1, GNG7, ADAM28, RALGPS2, CD79B, RUBCNL, CD22, ANGPTL1, BLK
##     KHDRBS2, TCL1A, ADAM7-AS1, COBLL1, HLA-DQA1, BCL11A, OSBPL10, CDK14, LIX1-AS1, WDFY4
## Negative:  S100A4, SRGN, CD247, TMSB4X, SYTL3, IL32, MYO1F, S100A6, RORA, AOAH
##     ARHGAP26, NKG7, CCL5, TNIK, BCL11B, RAP1GAP2, ANXA1, TGFBR3, CTSW, GZMA
##     SAMD3, CST7, ID2, PYHIN1, FNDC3B, GZMH, NEAT1, TRAC, HIVEP3, SLCO3A1
## PC_ 3
## Positive:  NKG7, GNLY, GZMB, CST7, GZMA, FGFBP2, CCL5, AOAH, KLRD1, GZMH
##     PRF1, MCTP2, C1orf21, ZEB2, KLRF1, CTSW, SPON2, RAP1GAP2, MYO1F, SYNE1
##     HOPX, CCL4, LINC02384, FCRL6, PDGFD, PPP2R2B, NCALD, JAZF1, TTC38, VAV3
## Negative:  PRKCA, CAMK4, SERINC5, LTB, LEF1, INPP4B, IL7R, RPL13, RCAN3, TSHZ2
##     FHIT, RPS12, ANK3, MAL, NELL2, RPLP1, LDHB, RPS18, SESN3, ENSG00000249806
##     MAML2, FAAH2, TESPA1, CCR7, PRKCQ-AS1, PAG1, BCL2, CSGALNACT1, PDE3B, PVT1
## PC_ 4
## Positive:  HES4, ENSG00000287682, CDKN1C, FMNL2, CSF1R, LYPD2, FCGR3A, CCDC26, MS4A7, TBC1D8
##     PAPSS2, TCF7L2, CTSL, IFITM3, BATF3, MS4A4A, CKB, LINC02345, KCNMA1, UICLM
##     SPRED1, SIGLEC10, RHOC, HMOX1, NEURL1, VMO1, ICAM4, TNFRSF8, SCRN1, PELATON
## Negative:  S100A12, VCAN, ENSG00000257764, CD36, S100A8, FCAR, CD14, CSF3R, MS4A6A, CREB5
##     DYSF, AQP9, CXCL8, ENSG00000287979, CLEC4E, MGST1, LUCAT1, ACSL1, ANPEP, PLBD1
##     CYP1B1, TEX14, THBS1, TREM1, CCDC200, ENSG00000289150, ENSG00000276216, NLRP12, S100A9, LINC00937
## PC_ 5
## Positive:  RPS18, RPL13, RPS12, RPLP1, LINC-PINT, DPYD, JUNB, CD44, PPP1R16B, S100A6
##     S100A4, RNF149, RORA, CRIP1, IL32, ARHGAP26, NEAT1, S100A10, NFKB1, ADGRE5
##     FBXW7, NIBAN1, MYO1F, TNFAIP3, PICALM, SYTL3, CDC14A, JUN, GPCPD1, ANXA1
## Negative:  PPBP, CAVIN2, PF4, GNG11, TUBB1, GP1BB, CMTM5, ITGA2B, ITGB3, NRGN
##     H2AC6, CTTN, ENSG00000288882, SPARC, GP9, TREML1, ACRBP, CLU, MPIG6B, CD9
##     SNCA, RGS18, BEX3, ENSG00000289621, MYL9, PRKAR2B, PGRMC1, TPM1, SH3BGRL2, MYLK
# Cluster
seu <- FindNeighbors(seu, dims = 1:10)
## Computing nearest neighbor graph
## Computing SNN
seu <- FindClusters(seu, algorithm = 4, random.seed = seed)

# UMAP
seu <- RunUMAP(seu, dims = 1:10, seed.use = seed)
## Warning: The default method for RunUMAP has changed from calling Python UMAP via reticulate to the R-native UWOT using the cosine metric
## To use Python UMAP via reticulate, set umap.method to 'umap-learn' and metric to 'correlation'
## This message will be shown once per session
## 07:24:01 UMAP embedding parameters a = 0.9922 b = 1.112
## 07:24:01 Read 2651 rows and found 10 numeric columns
## 07:24:01 Using Annoy for neighbor search, n_neighbors = 30
## 07:24:01 Building Annoy index with metric = cosine, n_trees = 50
## 0%   10   20   30   40   50   60   70   80   90   100%
## [----|----|----|----|----|----|----|----|----|----|
## **************************************************|
## 07:24:01 Writing NN index file to temp file /var/folders/q4/05k1bf1x3jq6p6pm_5f1xnw40000gp/T//RtmphVsza7/file571e6db9c295
## 07:24:01 Searching Annoy index using 1 thread, search_k = 3000
## 07:24:01 Annoy recall = 100%
## 07:24:01 Commencing smooth kNN distance calibration using 1 thread with target n_neighbors = 30
## 07:24:02 Initializing from normalized Laplacian + noise (using RSpectra)
## 07:24:02 Commencing optimization for 500 epochs, with 104764 positive edges
## 07:24:02 Using rng type: pcg
## 07:24:05 Optimization finished

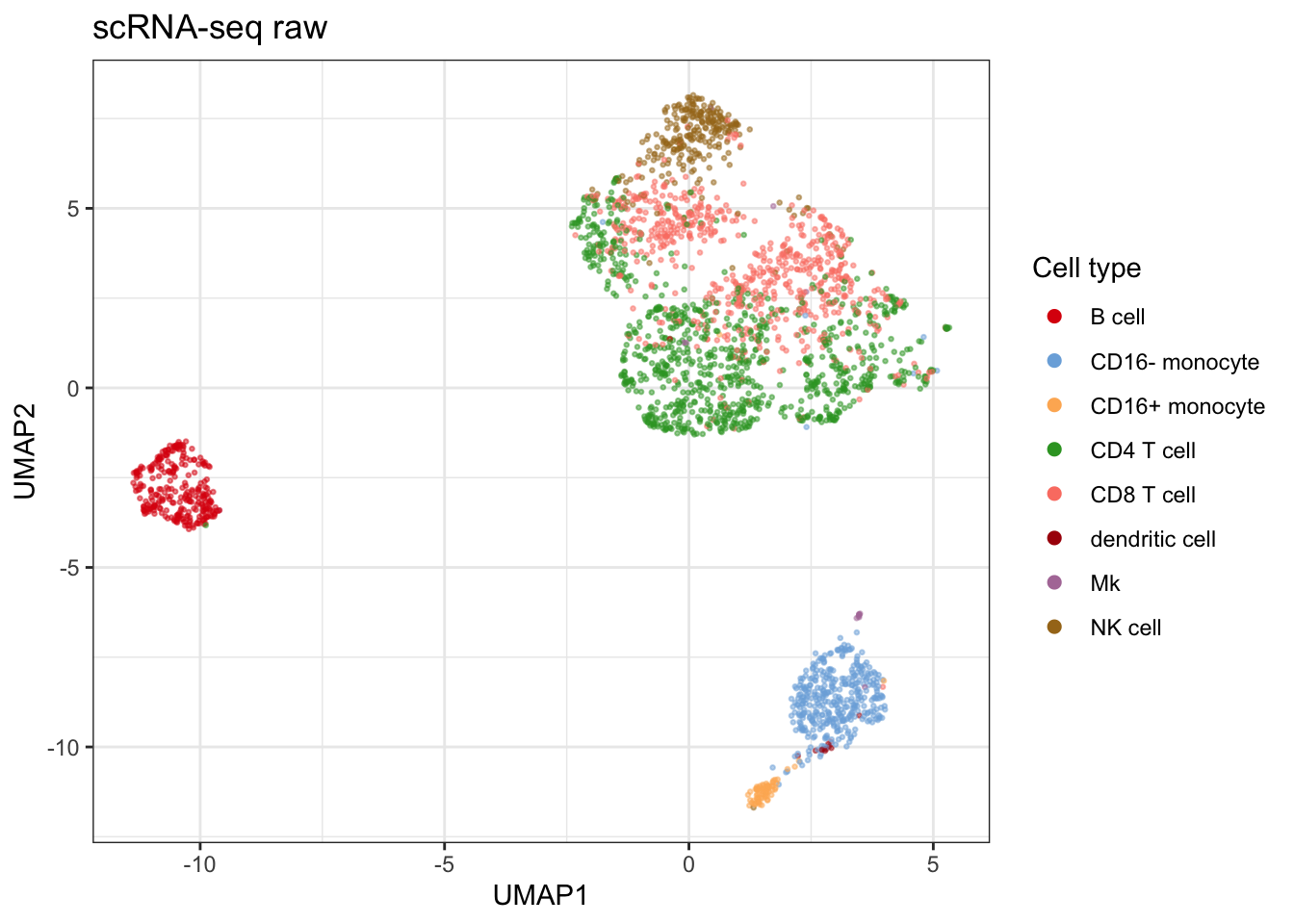

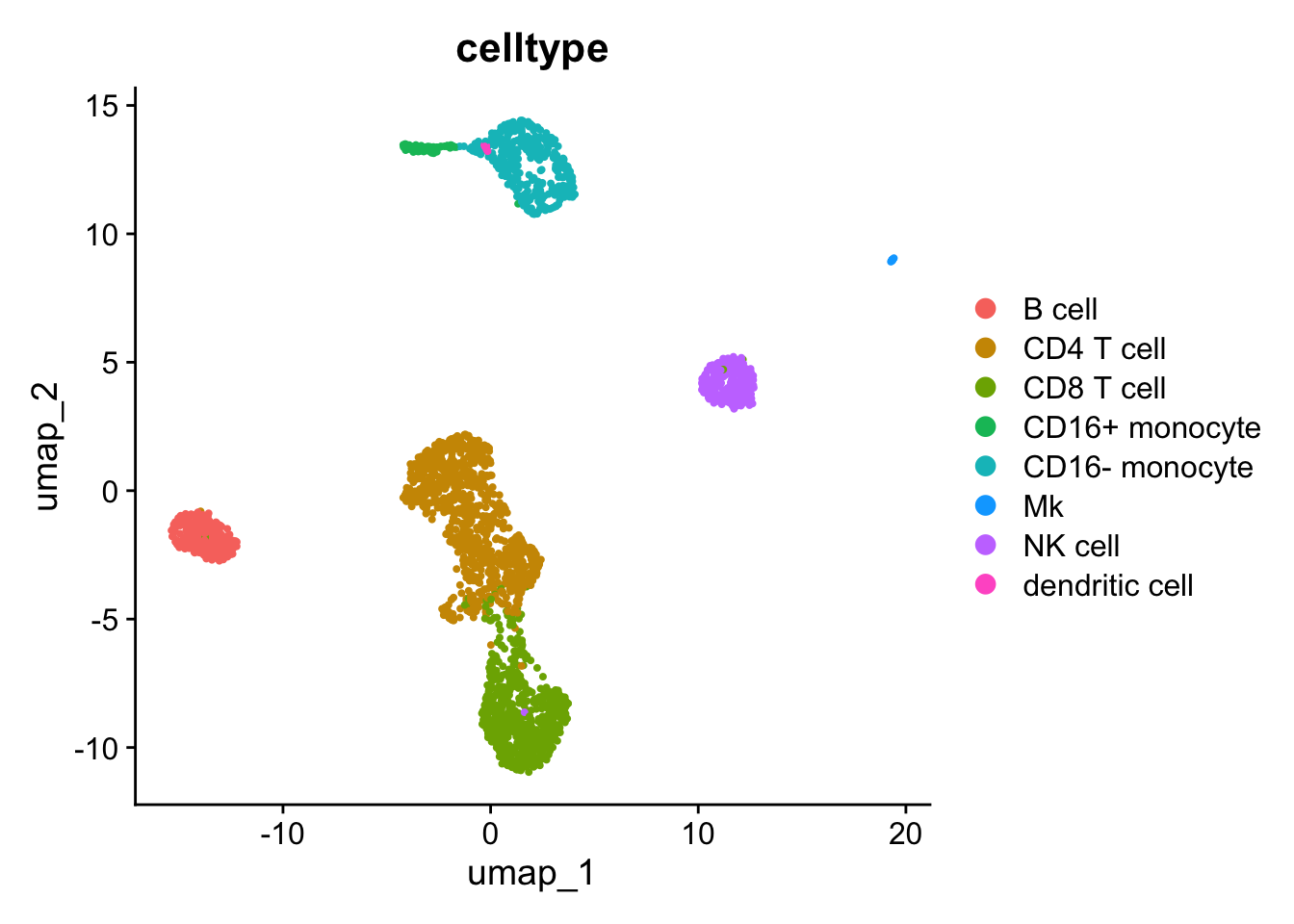

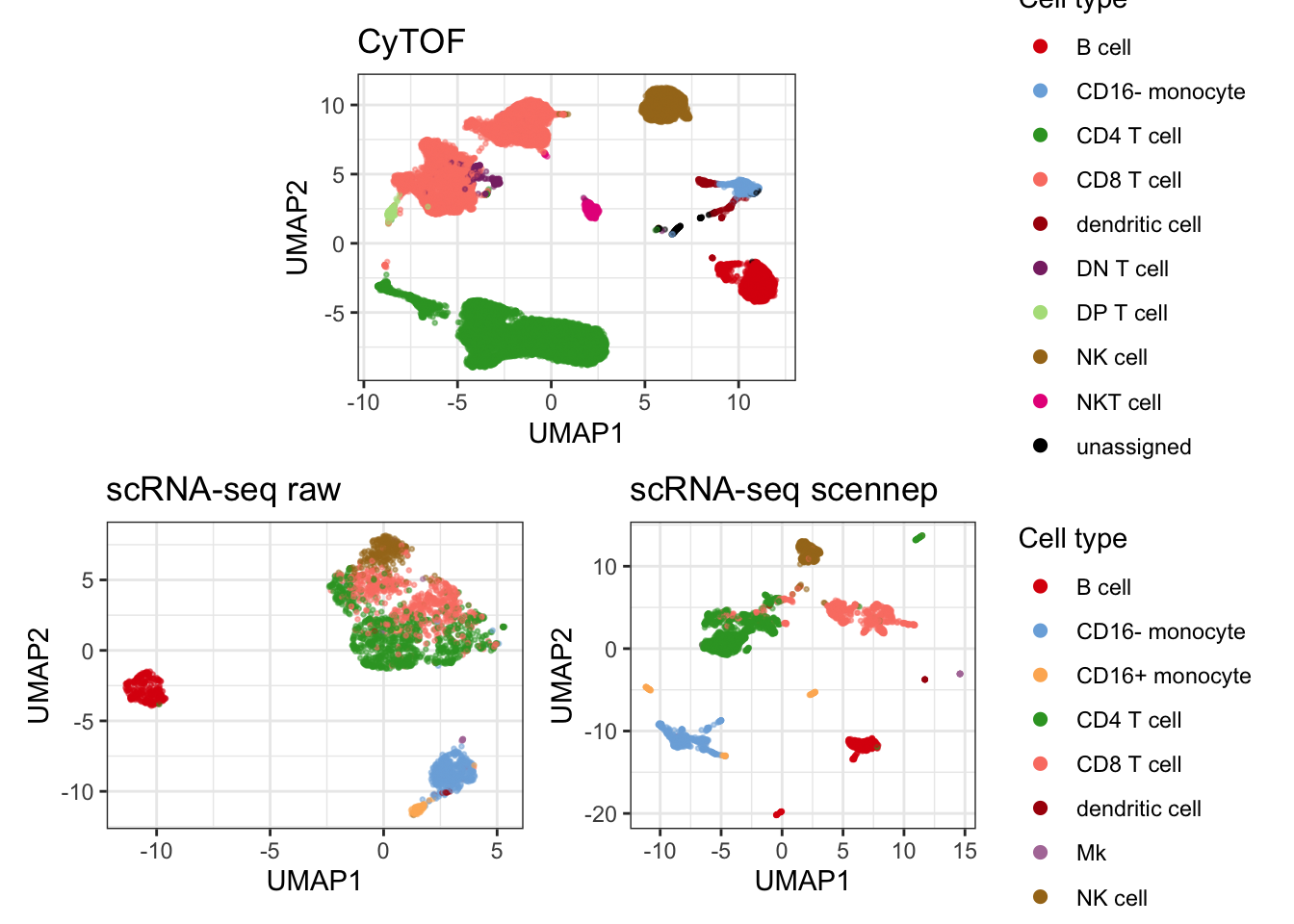

DimPlot(seu, reduction = "umap", group.by = "celltype")

CyTOF

Load FCS files into R and clean marker names.

data_dir <- "../../../data/pbmc/paired_cytometry_scrna/FR-FCM-Z6ZN/"
cytof_fs <- cyCombine::compile_fcs(data_dir, pattern = "analyze_normalized")
## Reading 1 files to a flowSet..
cytof_fs[[1]] |> flowCore::parameters() |> Biobase::pData() |>
  dplyr::filter(stringr::str_detect(desc, "_"),
         stringr::str_detect(desc, "BC", negate = T)) |>
  pull("desc")
##                 $P2S                 $P3S                $P12S
##       "Event_length"           "89Y_CD45"         "115In_CD44"
##                $P20S                $P21S                $P23S
##        "141Pr_CD11b"        "142Nd_CD79b"         "144Nd_CD19"
##                $P24S                $P25S                $P26S
##        "145Nd_CD11c"          "146Nd_IgD"         "147Sm_CD68"
##                $P27S                $P28S                $P29S
##         "148Nd_CD16"         "149Sm_CD25"         "150Nd_CD43"
##                $P30S                $P32S                $P34S
##        "151Eu_CD103"       "153Eu_CD45RA"         "155Gd_CD27"
##                $P35S                $P36S                $P37S
##         "156Gd_CD86" "157Gd_Nucleoporins"         "158Gd_CD33"
##                $P39S                $P40S                $P41S
##         "160Gd_CD14"         "161Dy_Tbet"        "162Dy_FoxP3"
##                $P43S                $P44S                $P45S
##        "164Dy_CD161"         "165Ho_CD8a"        "166Er_CD49a"
##                $P47S                $P48S                $P49S
##         "168Er_CD69"          "169Tm_CD4"          "170Er_CD3"
##                $P50S                $P51S                $P52S
##         "171Yb_CD20"         "172Yb_CD38"       "173Yb_CD45RO"
##                $P53S                $P54S                $P55S
##        "174Yb_HLADR"     "175Lu_Perforin"         "176Yb_CD56"
##                $P57S                $P58S                $P59S
## "191Ir_Intercalator" "193Ir_Intercalator"    "194Pt_Cisplatin"
##                $P60S                $P61S
##    "195Pt_Cisplatin"    "198Pt_Cisplatin"
cytof <- prepare_data(flowset = cytof_fs, clean_colnames = F, down_sample = F, transform = T)
## Converting flowset to data frame
## Extracting expression data..
## Your flowset is now converted into a dataframe.
## Transforming data using asinh with a cofactor of 5..
## Done!
colnames(cytof) <- colnames(cytof) |>
  stringr::str_remove_all("^\\d+[A-Za-z]+_?")
cytof <- cytof[, stringr::str_detect(colnames(cytof), "^(CD|Fox|Tbet|id|sample|IgD|HLA)")]

markers <- cyCombine::get_markers(cytof)

Annotation

I could not extract the annotation used in Su et al., so I manually annotated using more or less the same approach as they do.

cytof$label <- create_som(
  cytof, seed = 334, cluster_method = "flowsom", xdim = 6, ydim = 6, nClus = 18)

umap_cytof <- cytof |>
  plot_umap(markers = markers, col = "label", seed = 334, return_data = TRUE, down_sample = T, sample_n = 30000, title = "CyTOF UMAP")
## Generating UMAP

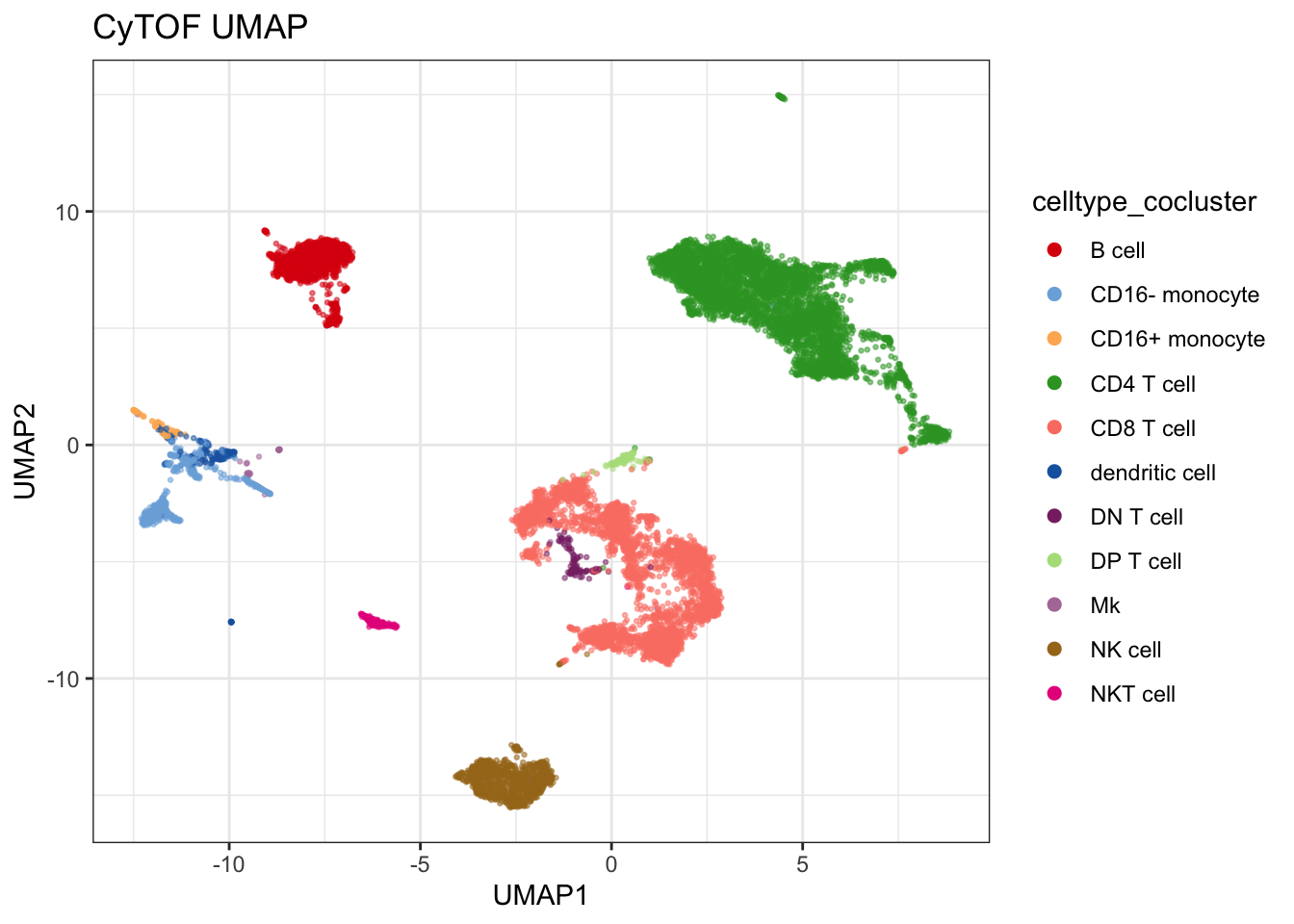

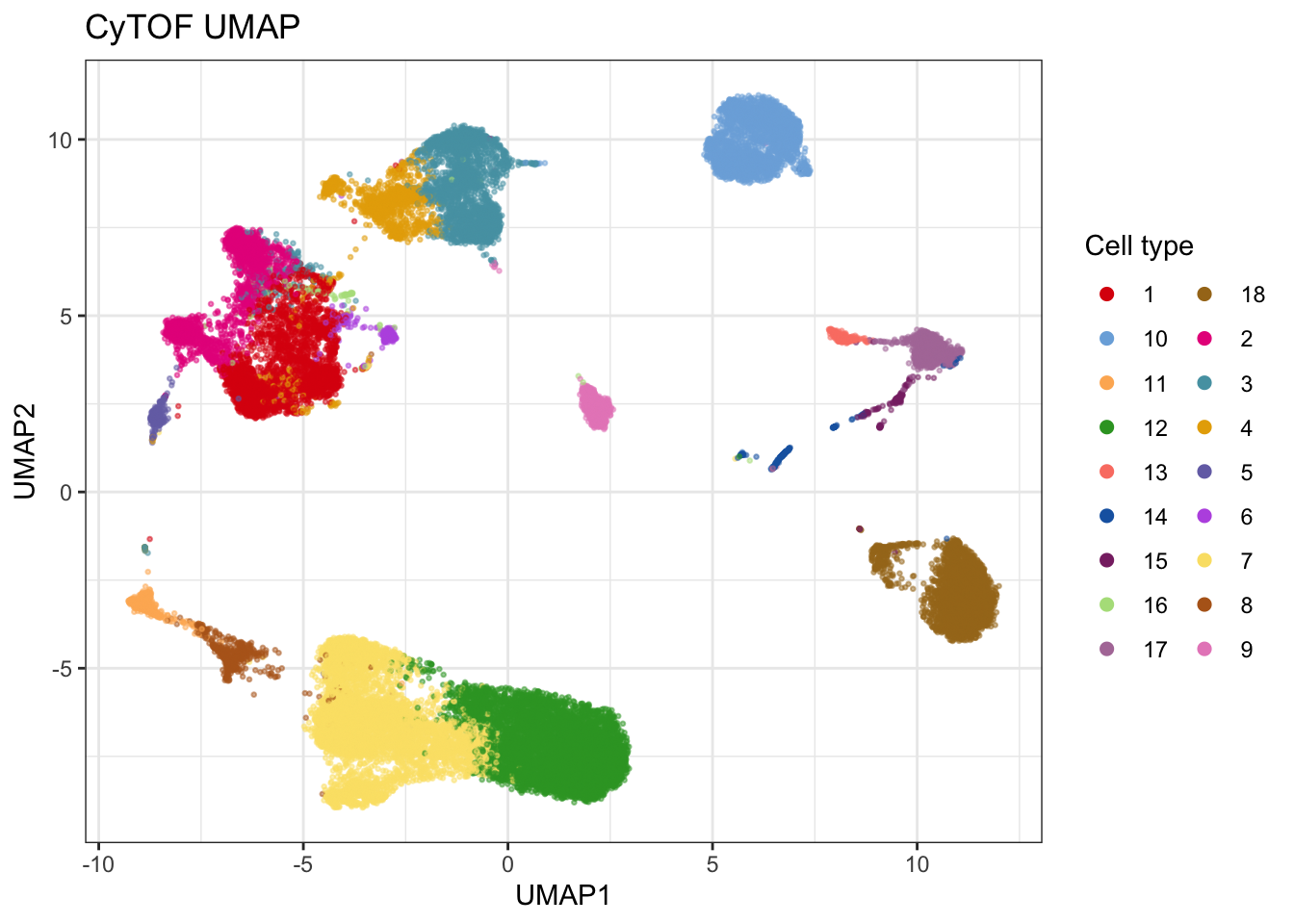

umap_cytof$plot

# plot_embedding(umap_cytof$data, col = "CD4", title = "CyTOF CD4")

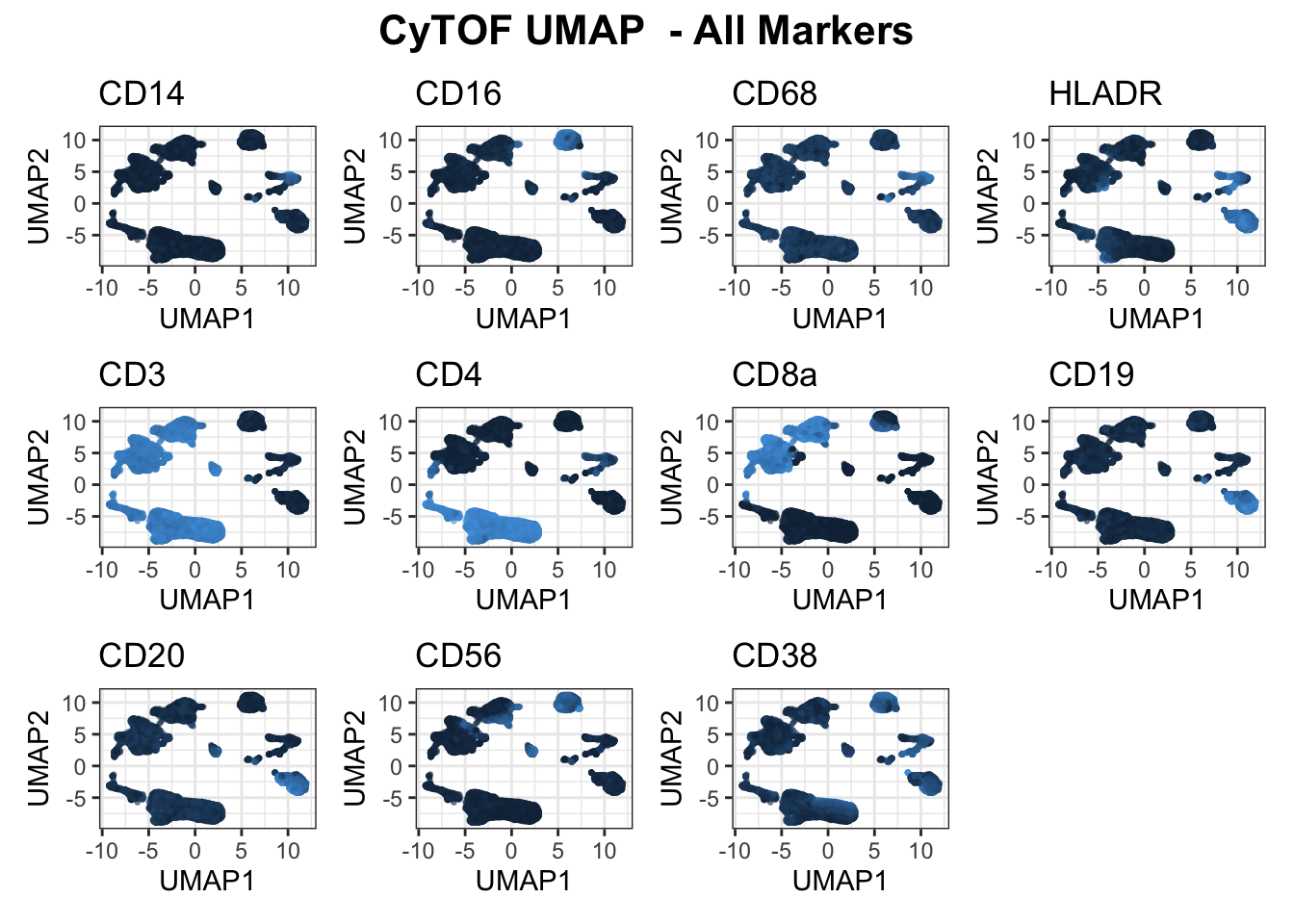

plot_markers(umap_cytof$data, markers = c("CD14", "CD16", "CD68", "HLADR", "CD3", "CD4", "CD8a", "CD19", "CD20", "CD56", "CD38"), show_legend = F)

plot_markers(umap_cytof$data, markers = sort(markers), show_legend = F)

cyDefine::plot_heatmap(umap_cytof$data, population_col = "label", markers_to_plot = sort(markers))

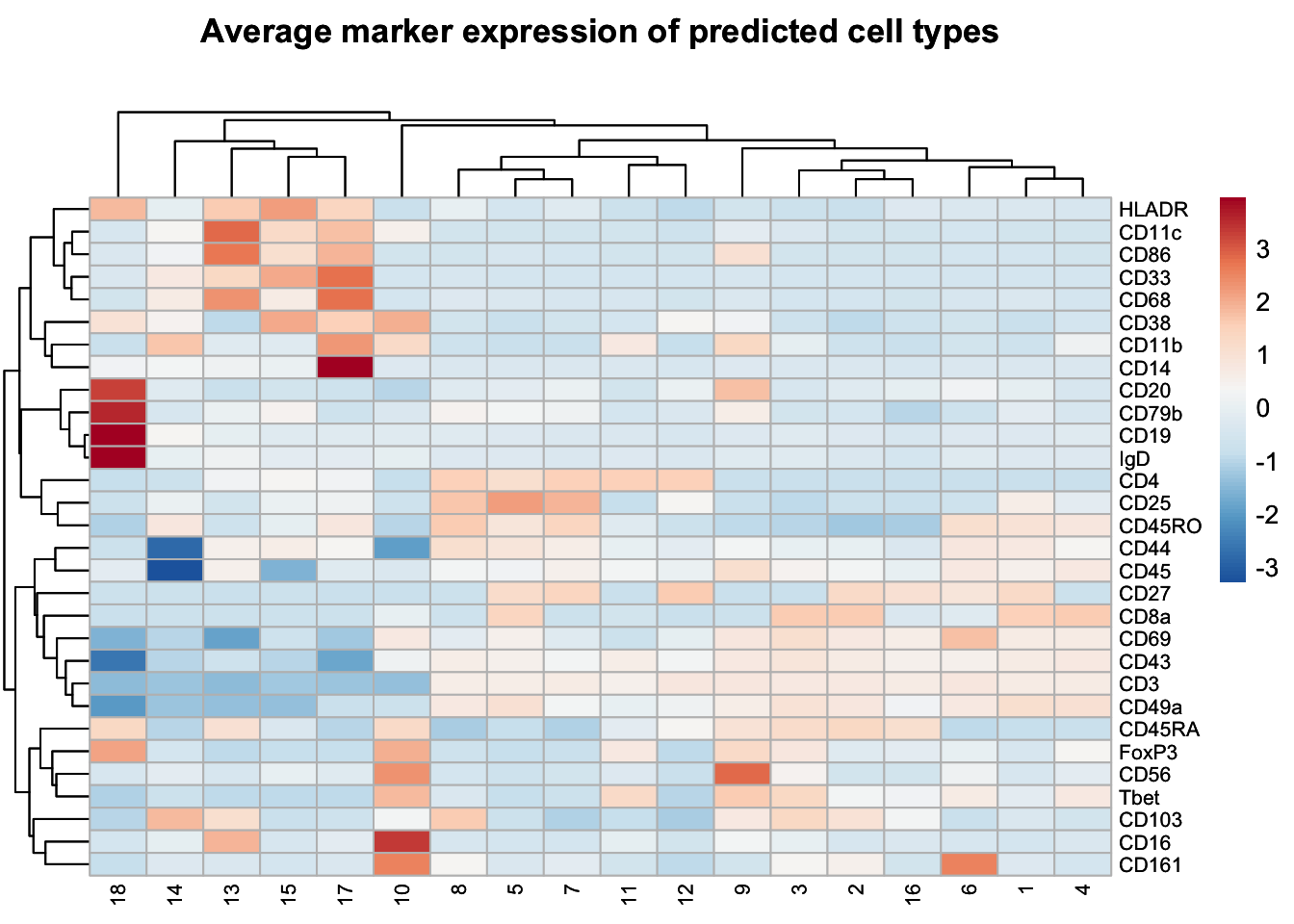

## Visualizing expression of predicted cell types

Cell Type Markers
CD4 T cells CD3+, CD4+
CD8 T cells CD3+, CD8a+
B cells CD19+, CD20+, CD79b+, HLADR+
NK cells CD56+
NKT cells CD56+, CD3+
CD16- monocytes CD14+, CD16-
CD16+ monocytes CD16+
DCs HLADR+, CD68+
DN T cells CD3+, CD4-, CD8a-
DP T cells CD3+, CD4+, CD8a+
annotation <- c(
  "1" = "CD8 T cell",
  "2" = "CD8 T cell",
  "3" = "CD8 T cell",
  "4" = "CD8 T cell",
  "5" = "DP T cell",
  "6" = "DN T cell",
  "7" = "CD4 T cell",
  "8" = "CD4 T cell",
  "9" = "NKT cell",
  "10" = "NK cell",
  "11" = "CD4 T cell",
  "12" = "CD4 T cell",
  "13" = "dendritic cell",
  "14" = "unassigned",
  "15" = "dendritic cell",
  "16" = "DN T cell",
  "17" = "CD16- monocyte",
  "18" = "B cell")

cytof <- cytof |>

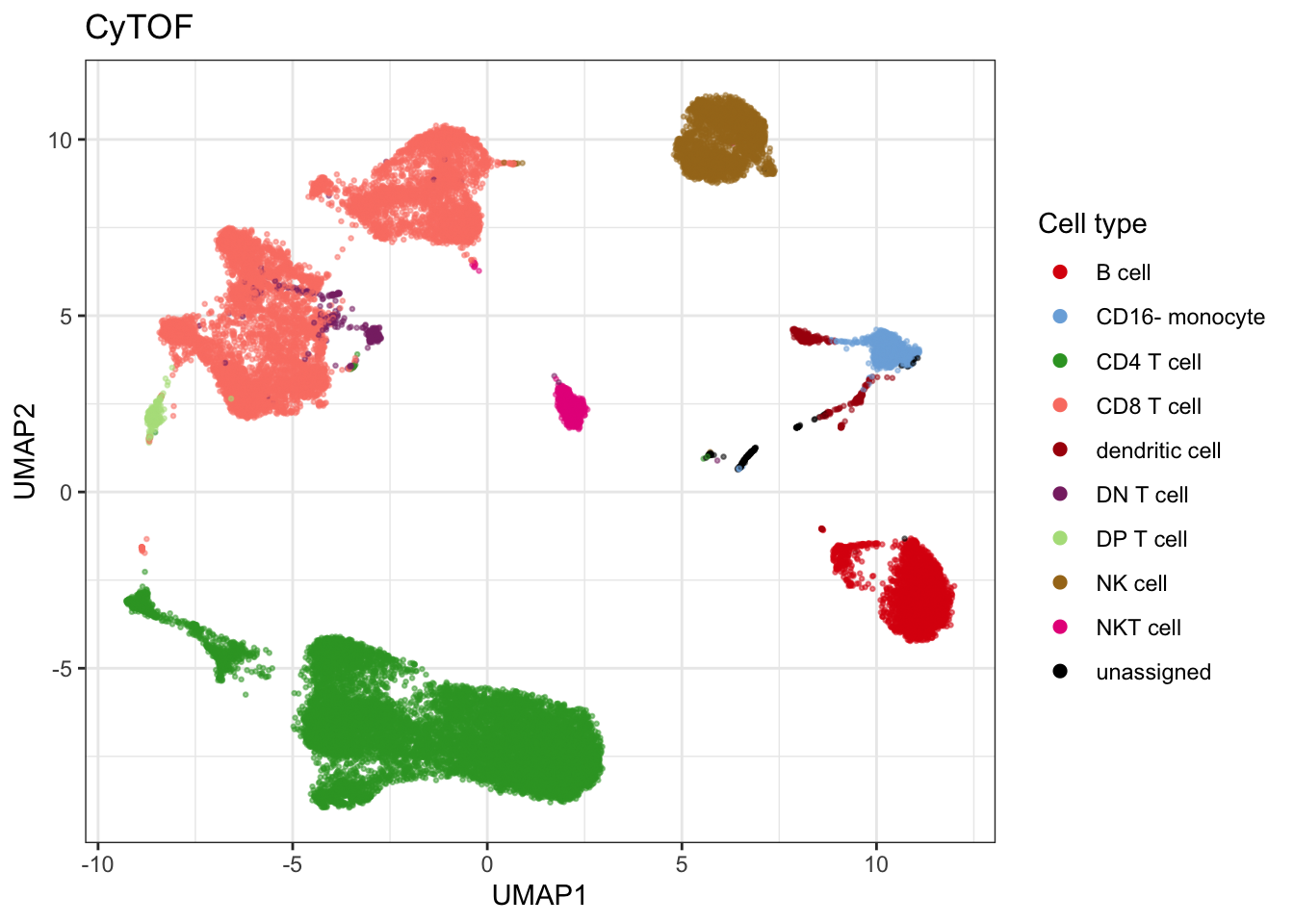

  mutate(label = stringr::str_remove_all(label, "cluster_"),
         batch = "CyTOF",
         celltype = annotation[label])

umap_cytof$data$celltype <- annotation[stringr::str_remove_all(umap_cytof$data$label, "cluster_")]

unique_cells <- c(as.character(seu$celltype), cytof$celltype) |> unique() |> sort()
celltype_colors <- cyDefine::get_distinct_colors(unique_cells)
celltype_colors["dendritic cell"] <- "#AA0A0A"

plot_cytof_exprs <- plot_embedding(umap_cytof$data, col = "celltype", title = "CyTOF", colors = celltype_colors, legend_title = "Cell type")
plot_cytof_exprs

Convert protein to gene

I convert protein names to gene names to find the common features between the two datasets.

protein_gene <- data.frame(
  Protein = c("CD45", "CD11b", "CD79b", "CD11c", "IgD", "CD16", "CD25", "CD43", "CD103", "CD45RA",
              "Tbet", "FoxP3", "CD161", "CD8a", "CD49a", "CD3", "CD20", "CD45RO", "HLADR", "CD56"),
  Gene_Symbol = c("PTPRC", "ITGAM", "CD79B", "ITGAX", "IGHD", "FCGR3A", "IL2RA", "SPN", "ITGAE",
                 "PTPRC", "TBX21", "FOXP3", "KLRB1", "CD8A", "ITGA1", "CD3E", "MS4A1", "PTPRC",
                 "HLA-DRA", "NCAM1")
)


if ("CD45RO" %in% colnames(cytof)) {
  cd45 <- pmax(cytof$CD45, cytof$CD45RA, cytof$CD45RO)
  cytof <- cytof |>
    select(-starts_with("CD45")) |>
    mutate(CD45 = cd45)
  markers <- get_markers(cytof)
}

genes_to_rename <- rownames(seu)[rownames(seu) %in% protein_gene$Gene_Symbol]
rownames(seu)[rownames(seu) %in% genes_to_rename] <- protein_gene$Protein[match(genes_to_rename, protein_gene$Gene_Symbol)]

Here is the UMAP when only using those common features.

umap_rna_exprs <- seu@assays$RNA$data[markers, ] |>
  t() |>
  as.data.frame() |>
  mutate(celltype = seu$celltype) |>
  plot_umap(ref_col = "celltype",
            seed = 334,
            metric = "cosine",
            return_data = TRUE,
            title = "scRNA-seq raw",
            colors = celltype_colors)
## Generating UMAP
plot_rna_exprs <- umap_rna_exprs$plot
plot_rna_exprs

Run scennep

I run single-cell nearest-neighbor pseudobulking (scennep) using cosine distance. The umap demonstrates the impact of running scennep on the data.

## Run scennep
library(scennep)
rna <- scennep(
  seu,
  markers = markers,
  mc.cores = 4,
  distance = "cosine",
  return_S4 = FALSE
)
## Using the top 31 pcs for the SNN
## Building SNN graph with k = 20
## Pseudobulking each cell with its 20 nearest neighbors
rna <- as.data.frame(t(rna))
rna$batch <- "RNA"
rna$sample <- "RNA"
rna$celltype <- seu$celltype

umap_rna <- rna |>
  plot_umap(markers = markers,
            col = "celltype",
            legend_title = "Cell type",
            title = "scRNA-seq scennep",
            colors = celltype_colors,
            seed = 334,
            return_data = TRUE,
            metric = "cosine")
## Generating UMAP
plot_rna_scennep <- umap_rna$plot
# plot_embedding(umap_cytof$data, col = "CD4", title = "CyTOF CD4")
# plot_markers(umap_rna$data, markers = markers, show_legend = F)

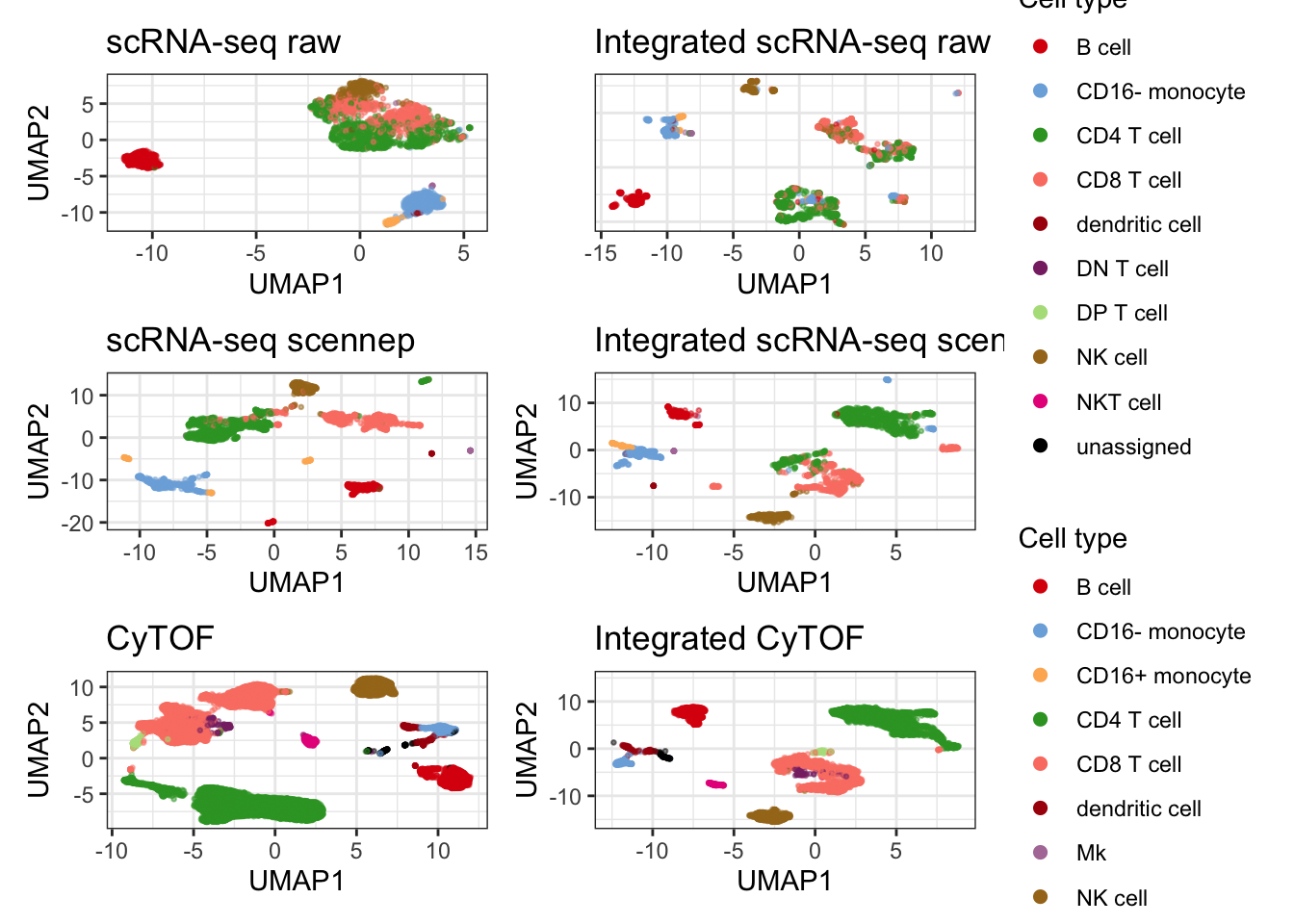

plot_cytof_exprs + plot_rna_exprs + plot_rna_scennep + patchwork::plot_layout(
  guides = "collect",
design = "
#11#
2233
")

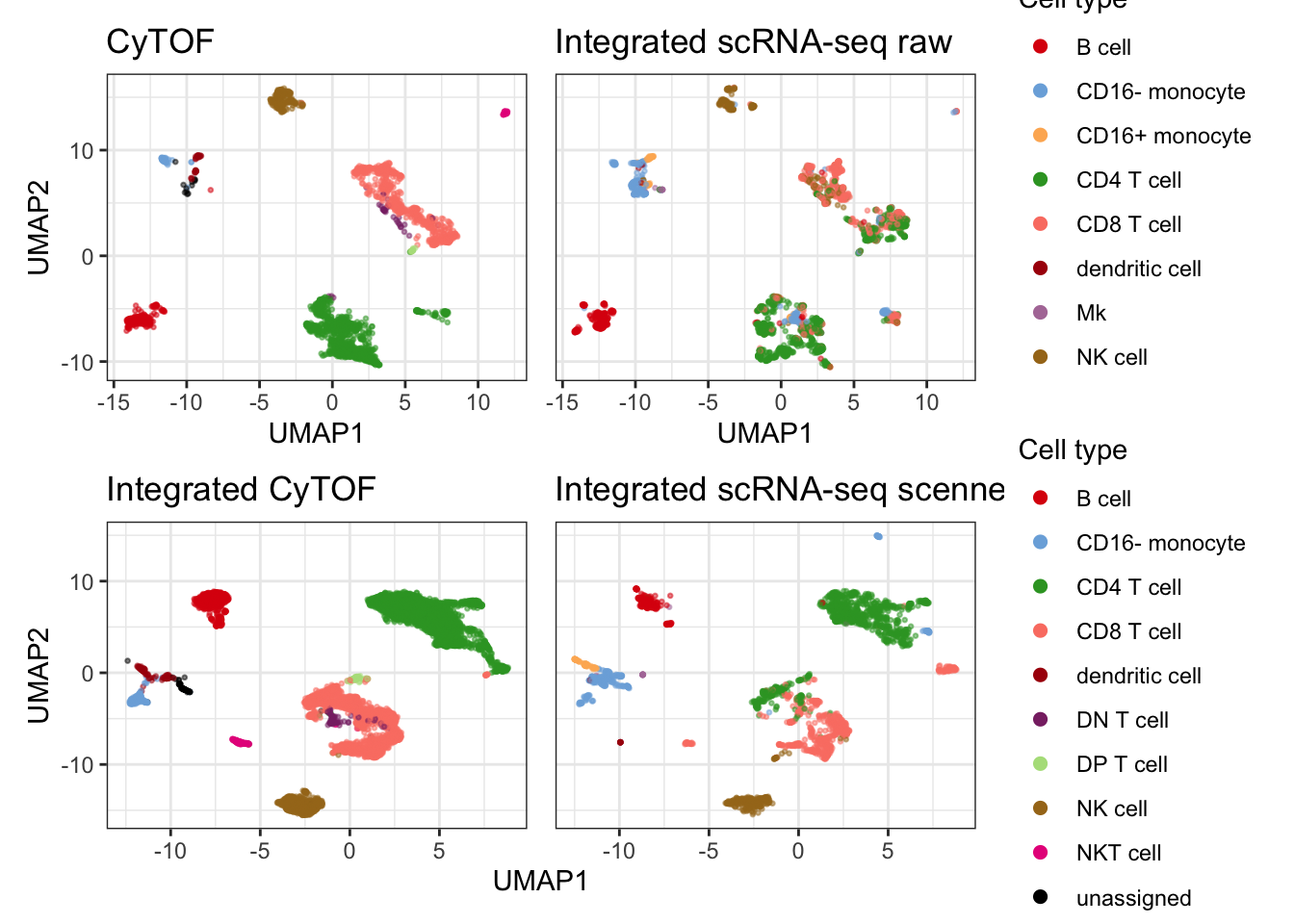

Merge datasets - exprs

I want to compare the integration with and without scennep, so I merge and correct both variants of the data using the same parameters.

# Extract expressions
exprs <- seu@assays$RNA$data
exprs <- as.data.frame(t(exprs))
exprs$batch <- "RNA"
exprs$sample <- "RNA"
exprs$celltype <- seu$celltype

# Merge datasets
set.seed(seed)
uncorrected_exprs <- exprs |>
  #
  dplyr::select(dplyr::any_of(c(markers, non_markers))) |>
  dplyr::bind_rows(cytof |>
                     # dplyr::slice_sample(n = n_cells*3) |>
                     dplyr::select(dplyr::any_of(c(markers, non_markers)))) |>
  dplyr::mutate(id = dplyr::row_number())

# saveRDS(uncorrected, "results/05_cytof_rnaseq_uncorrected.rds")

Batch correct - exprs

system.time({
  suppressMessages({ # Hide per-cluster correction info
    corrected_exprs <- cyCombine(
      uncorrected_exprs,
      markers = markers,
      norm_method = "scale",
      cluster_method = "flowsom",
      distf = "cosine",
      seed = seed,
      xdim = c(1, 5),
      ydim = c(1, 5),
      mc.cores = 4,
      method = "ComBat"
    )
  })
})
# saveRDS(corrected, "results/05_cytof_rnaseq_corrected.rds")

Merge datasets - scennep

# Merge datasets
set.seed(seed)
uncorrected <- rna |>
  dplyr::select(dplyr::any_of(c(markers, non_markers))) |>
  dplyr::bind_rows(cytof |>
                     dplyr::select(dplyr::any_of(c(markers, non_markers)))) |>
  dplyr::mutate(id = dplyr::row_number())

# saveRDS(uncorrected, "results/05_cytof_rnaseq_uncorrected.rds")
set.seed(seed)

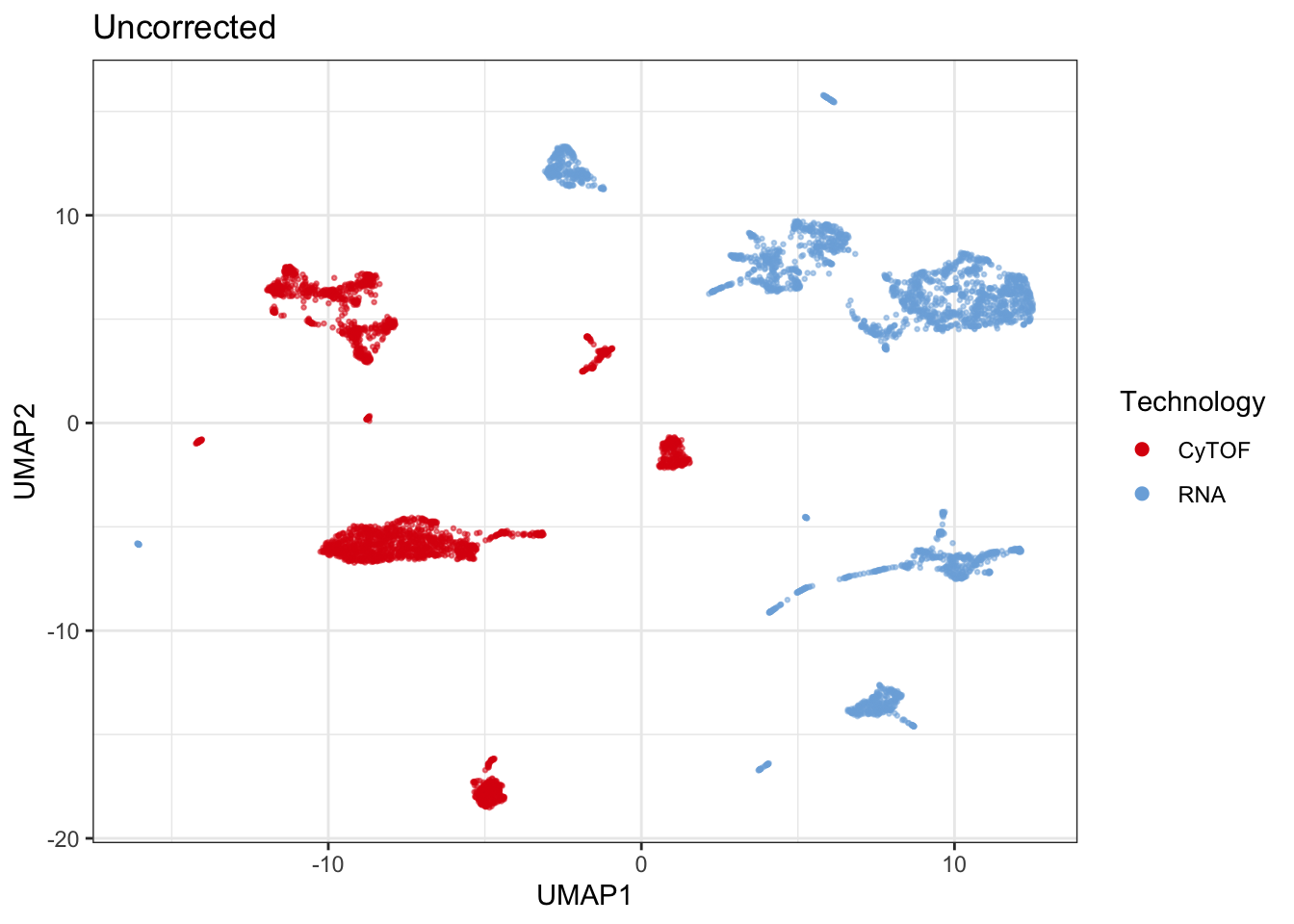

uncor_batch <- uncorrected |>
  dplyr::group_by(sample) |>
  dplyr::slice_sample(n = nrow(rna)) |>
  plot_umap(
  down_sample = F,
  title = "Uncorrected",
  legend_title = "Technology",
  metric = "cosine",
  markers = markers,
  col = "batch")
## Generating UMAP
# saveRDS(uncor_batch, "results/05_cytof_rnaseq_uncor.rds")

uncor_batch

Batch correct - scennep

system.time({
  suppressMessages({ # Hide per-cluster correction info
    corrected <- cyCombine(
      uncorrected,
      markers = markers,
      norm_method = "scale",
      cluster_method = "flowsom",
      distf = "cosine",
      # ref.batch = "CyTOF",
      seed = seed,
      xdim = c(1, 5),
      ydim = c(1, 5),
      mc.cores = 4,
      method = "ComBat"
    )
  })
})
# saveRDS(corrected, "results/05_cytof_rnaseq_corrected.rds")

Plot results - Batch

set.seed(seed)

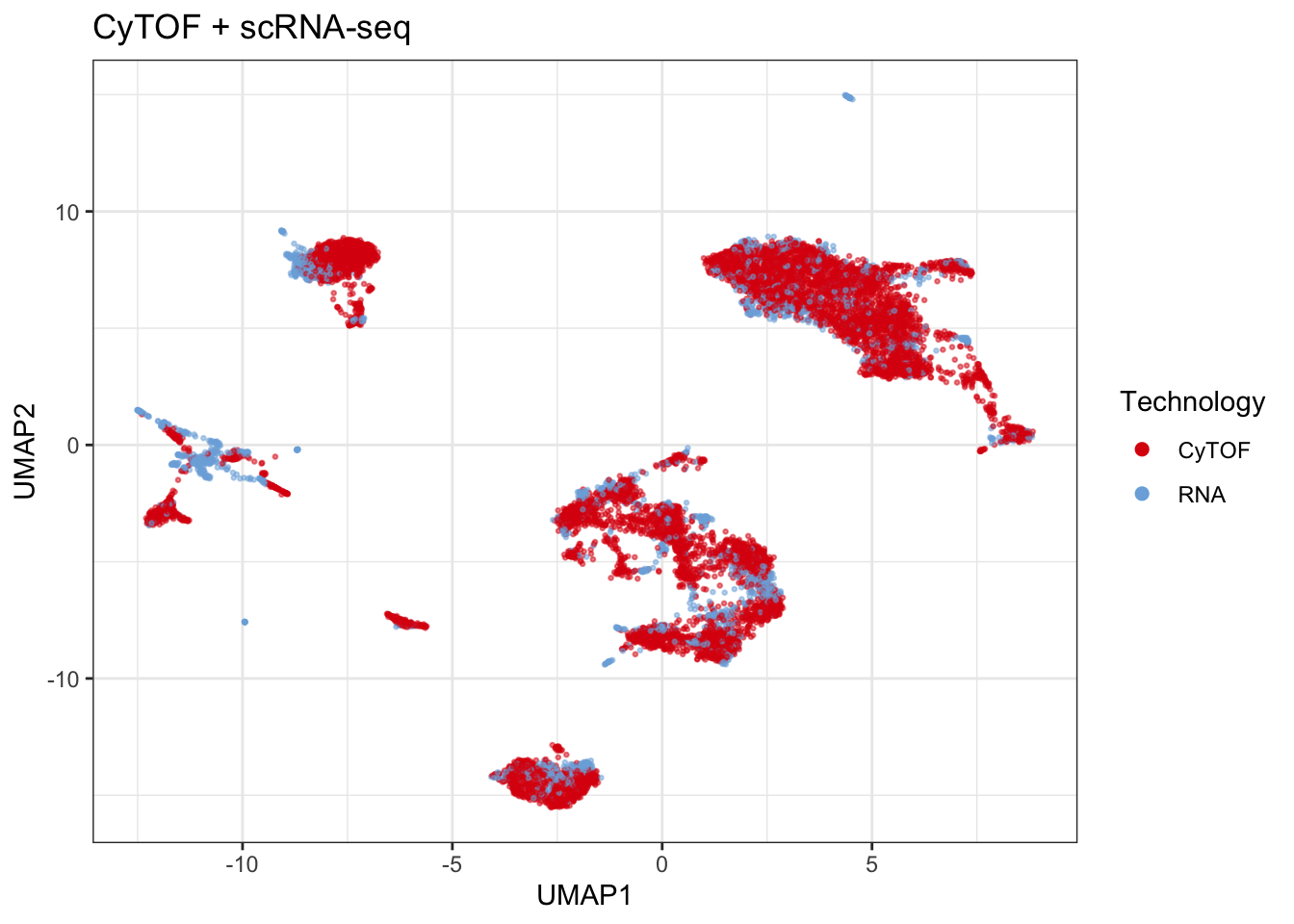

plot_batch <- corrected |>
  dplyr::group_by(sample) |>
  dplyr::slice_sample(n = 10000) |>
  plot_umap(
  down_sample = F,
  # markers = markers,
  title = "CyTOF + scRNA-seq",
  return_data = T,
  metric = "cosine",
  legend_title = "Technology",
  col = "batch")
## Generating UMAP
# ggplot2::ggsave(plot_batch$plot, filename = "figs/05_cytof_rnaseq_batch.png")
# saveRDS(plot_batch$plot, "results/05_cytof_rnaseq_batch.rds")
plot_batch$plot

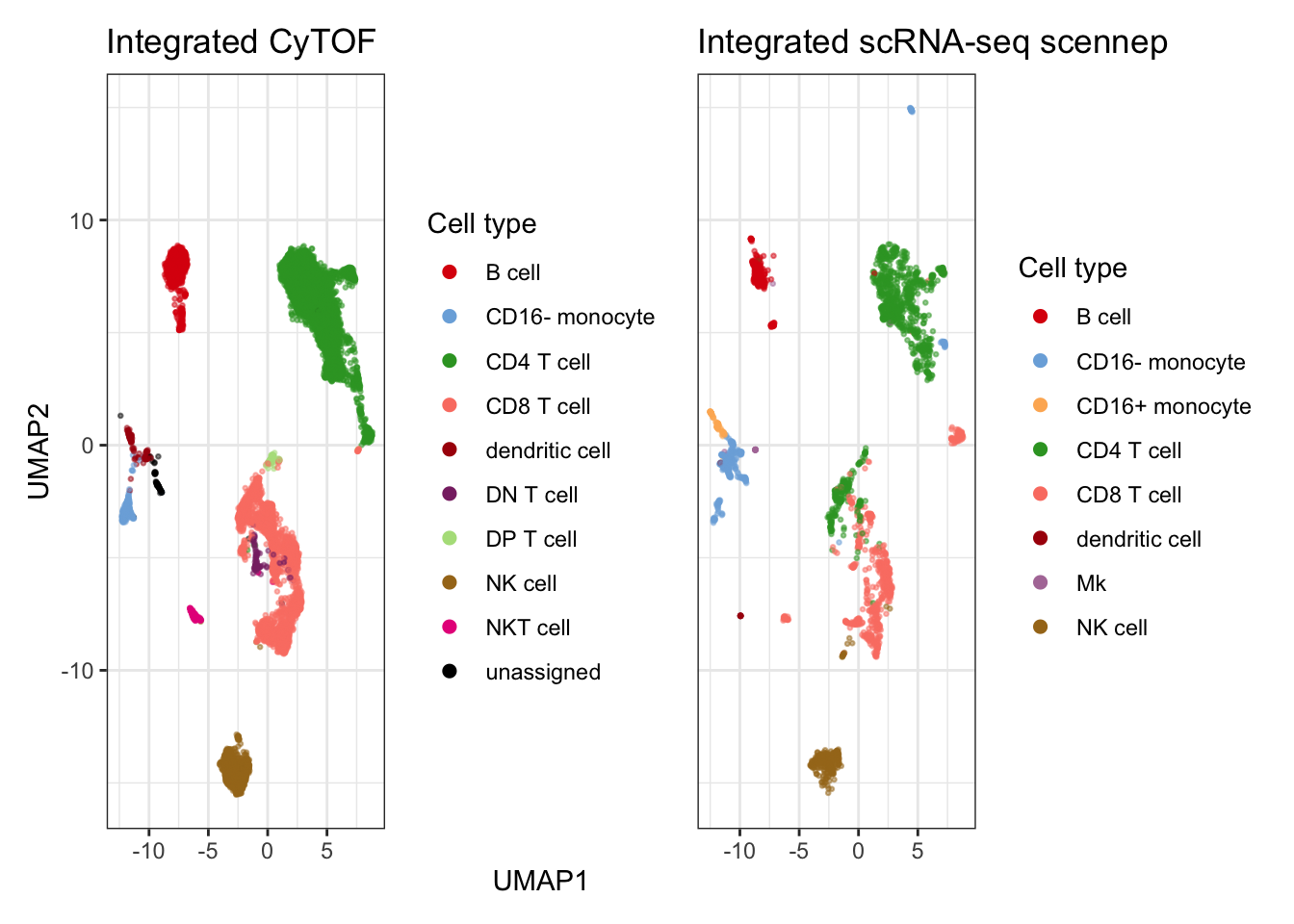

Plot results - Cells

Here, I reuse the umap generated above to plot celltype labels on the two modalities side by side.

xlim <- c(min(plot_batch$data$UMAP1), max(plot_batch$data$UMAP1))
ylim <- c(min(plot_batch$data$UMAP2), max(plot_batch$data$UMAP2))

plot_cell <-
  plot_embedding(
    dplyr::filter(plot_batch$data, batch == "CyTOF"),
    colors = celltype_colors,
    xlim = xlim,
    ylim = ylim,
    title = "Integrated CyTOF",
    col = "celltype",
    legend_title = "Cell type") +
  plot_embedding(
    dplyr::filter(plot_batch$data, batch == "RNA"),
    colors = celltype_colors,
    xlim = xlim,
    ylim = ylim,
    title = "Integrated scRNA-seq scennep",
    col = "celltype",
    legend_title = "Cell type") +
  patchwork::plot_layout(
    axes = "collect",
    axis_titles = "collect")

plot_cell

# saveRDS(plot_cell, "results/05_cytof_rnaseq_cell.rds")
# ggplot2::ggsave(plot_cell, filename = "figs/05_cytof_rnaseq_cell.png")

And here is a side-by-side comparison of the raw and integrated data with and without scennep.

set.seed(seed)
plot_cell_exprs <- cyDefine::plot_umap(
  corrected_exprs |> dplyr::filter(batch == "CyTOF"),
  corrected_exprs |> dplyr::filter(batch == "RNA"),
  down_sample = T,
  # min_dist = 0.2,
  colors = celltype_colors,
  sample_n = nrow(rna),
  title = c("CyTOF", "Integrated scRNA-seq raw"),
  markers = markers,
  metric = "cosine",
  col = "celltype")
## Generating UMAP
## Computing UMAP embedding of all cells of reference and query
plot_cell_exprs / plot_cell + plot_layout(guides = "collect")

 # plot_corrected_exprs_cytof + plot_corrected_cytof

umap_integration <- plot_cytof_exprs +
  plot_rna_exprs +
  plot_rna_scennep +
  plot_cell_exprs[[2]] +
  plot_cell[[2]] +
  plot_cell[[1]] +
  patchwork::plot_layout(
  guides = "collect",
  design = "
  2244
  3355
  1166
  ")
umap_integration

# ggplot2::ggsave(umap_integration, filename = "figs/05_integrationv2.png", height = 40, width = 35, units = "cm")
# ggplot2::ggsave(umap_integration, filename = "figs/05_integrationv2.pdf", height = 40, width = 35, units = "cm", )

Co-clustering

Here, we aim to improve the annotation of the individual datasets by co-clustering and annotating them jointly. Depending on the seed, a few subclusterings are necessary to separate the DC and monocyte populations.

set.seed(seed)

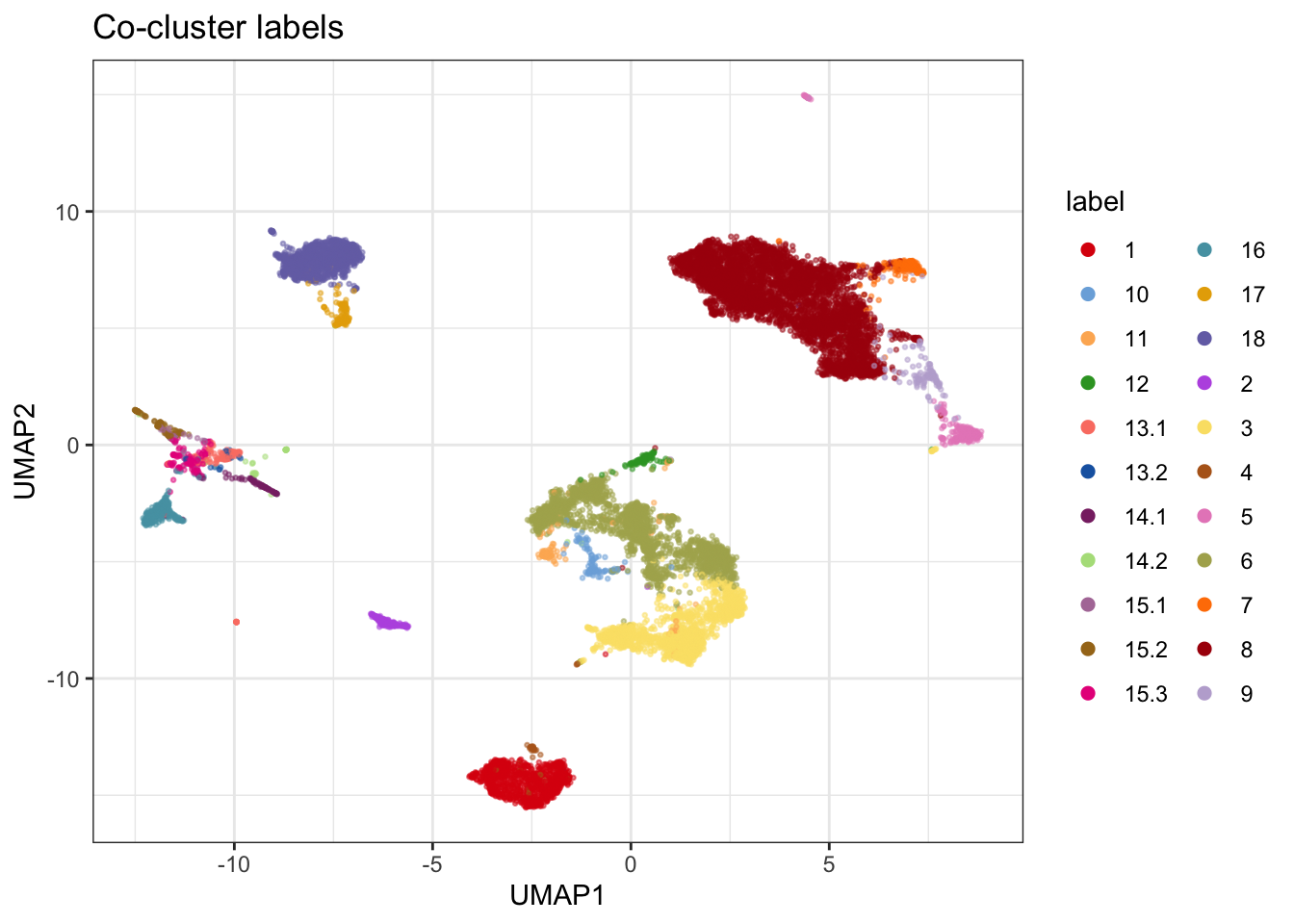

corrected$label <- create_som(
  corrected, seed = seed, distf = "cosine", cluster_method = "flowsom", xdim = 6, ydim = 6, nClus = 18) |>
  as.character()

plot_batch$data$label <- NULL
umap_combined <- plot_batch$data |>
  left_join(corrected[, c("id", "label")], by = "id")

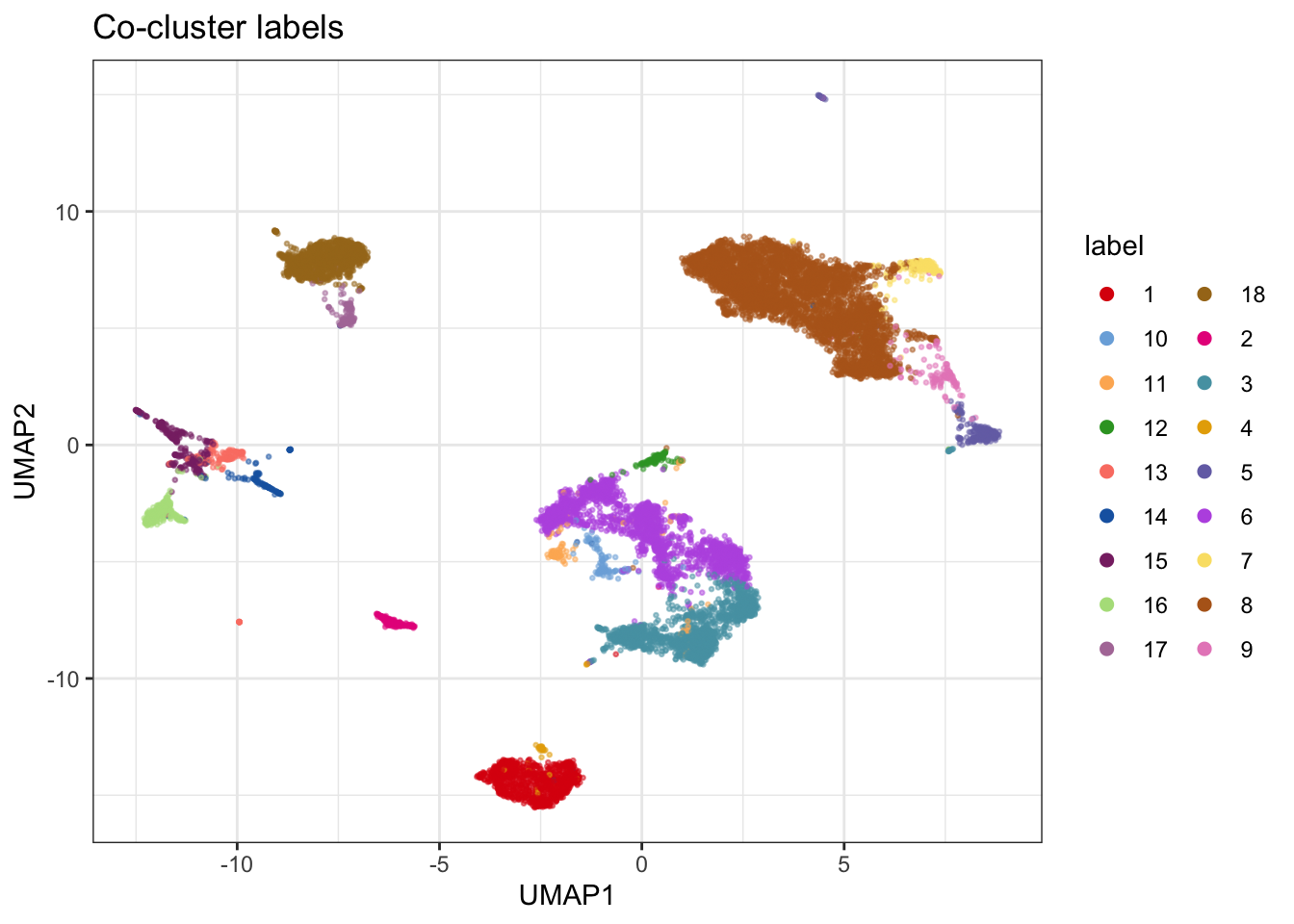

plot_embedding(umap_combined, col = "label", title = "Co-cluster labels")

lab13 <- paste0("13.", create_som(
  corrected[corrected$label == "13", markers], seed = seed, distf = "cosine", cluster_method = "flowsom", xdim = 1, ydim = 2))
## Building SOM
## Mapping data to SOM
corrected$label[corrected$label == "13"] <- lab13

lab14 <- paste0("14.", create_som(
  corrected[corrected$label == "14", markers], seed = seed, distf = "cosine", cluster_method = "flowsom", xdim = 1, ydim = 2))
## Building SOM
##
## Mapping data to SOM
corrected$label[corrected$label == "14"] <- lab14

lab15 <- paste0("15.", create_som(
  corrected[corrected$label == 15, markers], seed = seed, xdim = 1, ydim = 3))
## Creating SOM grid..
corrected$label[corrected$label == "15"] <- lab15

umap_combined <- plot_batch$data |>
  left_join(corrected[, c("id", "label")], by = "id")

plot_embedding(umap_combined, col = "label", title = "Co-cluster labels")

# ggsave(plot_embedding(umap_combined, col = "label", title = "Co-cluster labels"),
#        file = "figs/05_cocluster_labels.png")
annotation <- c(
  "1" = "NK cell",
  "2" = "NKT cell",
  "3" = "CD8 T cell",
  "4" = "NK cell",
  "5" = "CD4 T cell",
  "6" = "CD8 T cell",
  "7" = "CD4 T cell",
  "8" = "CD4 T cell",
  "9" = "CD4 T cell",
  "10" = "DN T cell",
  "11" = "CD8 T cell",
  "12" = "DP T cell",
  "13.1" = "dendritic cell",
  "13.2" = "CD16- monocyte",
  "14.1" = "CD16- monocyte",
  "14.2" = "Mk",
  "15.1" = "dendritic cell",
  "15.2" = "CD16+ monocyte",
  "15.3" = "CD16- monocyte",
  "16" = "CD16- monocyte",
  "17" = "B cell",
  "18" = "B cell")

corrected <- corrected |>
  mutate(celltype_cocluster = annotation[label])

umap_combined$celltype_cocluster <- annotation[umap_combined$label]
plot_embedding(umap_combined, col = "celltype_cocluster", title = "CyTOF UMAP")

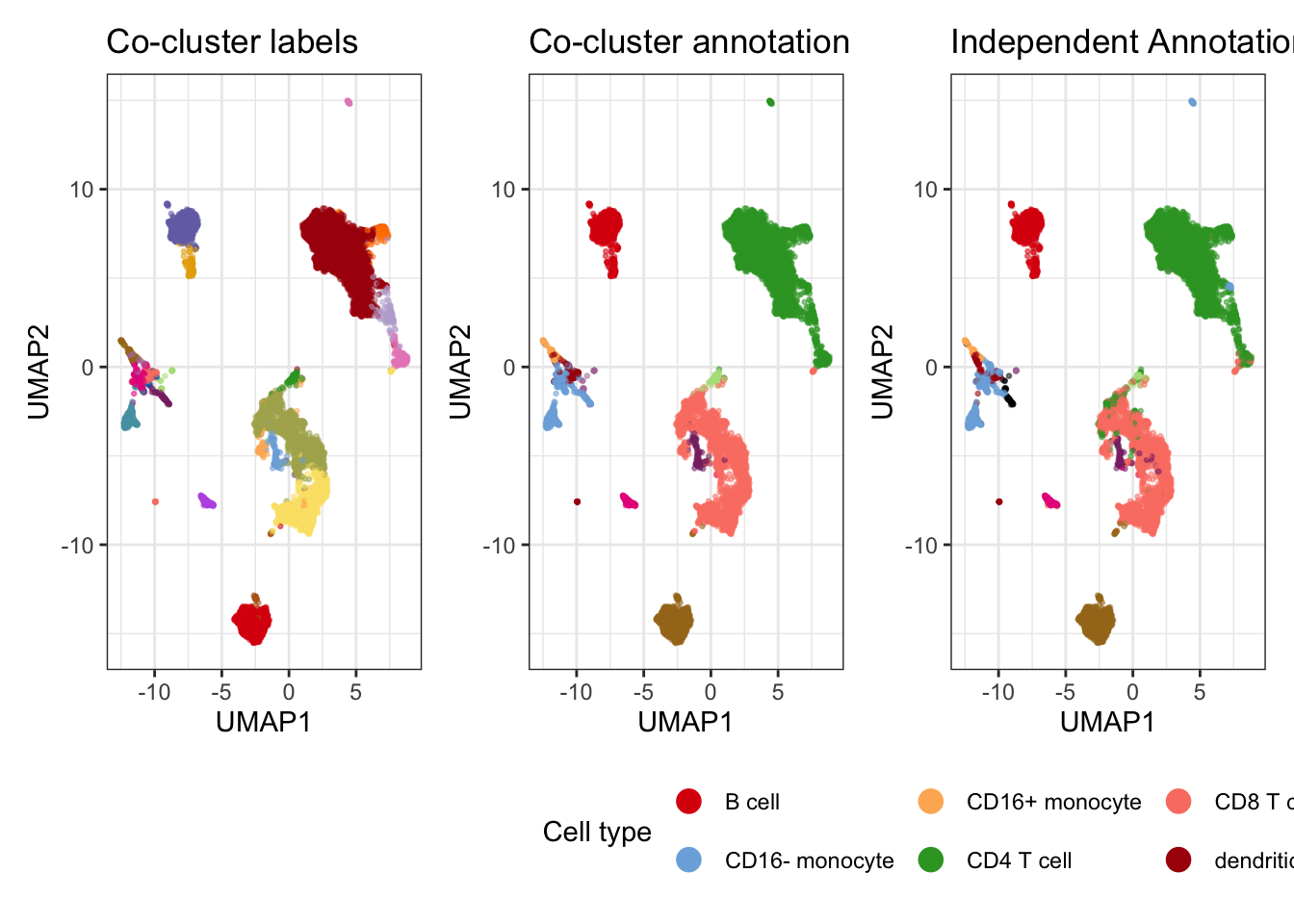

p_cocluster_annotation <- (plot_embedding(umap_combined, col = "label", title = "Co-cluster labels") + theme(legend.position = "none"))  +
(plot_embedding(umap_combined, col = "celltype_cocluster", colors = celltype_colors, title = "Co-cluster annotation", legend_title = "Cell type") +
   theme(legend.position = "bottom", legend.direction = "horizontal", legend.justification = "left") + guides(
    color = guide_legend(title = "Cell type",
      nrow = 2,
      override.aes = list(size = 4, alpha = 1)
    ))) +
  (plot_embedding(umap_combined, col = "celltype", colors = celltype_colors, title = "Independent Annotation") + theme(legend.position = "none"))
p_cocluster_annotation

# ggsave(p_cocluster_annotation, filename = "figs/05_cocluster_annotation.png", height = 15, width = 30, units = "cm")

Figure 4

library(ggplot2)
library(dplyr)
library(tidyr)
library(patchwork)

corrected$celltype <- as.character(corrected$celltype)
corrected$celltype_cocluster <- as.character(corrected$celltype_cocluster)

p_abundance_co <- plot_abundance_comparison(
  corrected |> dplyr::filter(batch == "CyTOF"),
  corrected |> dplyr::filter(batch == "RNA"),
  CLR = T,
  ref_name = "CyTOF", query_name = "scRNA-seq",
  ref_col = "celltype_cocluster", query_col = "celltype_cocluster") + ggtitle("Co-clustered")

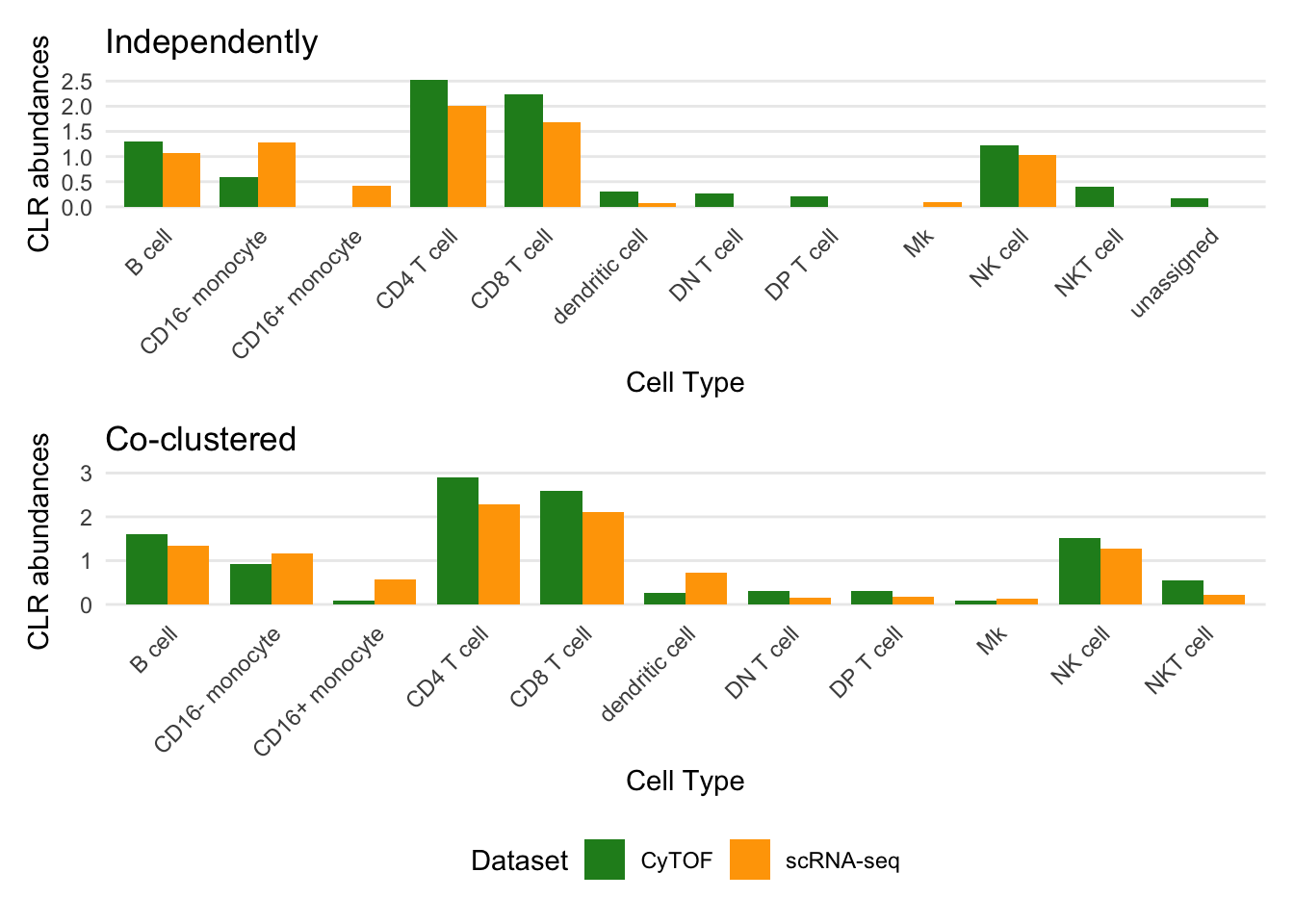

p_abundance <- plot_abundance_comparison(
  corrected |> dplyr::filter(batch == "CyTOF"),
  corrected |> dplyr::filter(batch == "RNA"),
  CLR = T,
  ref_name = "CyTOF", query_name = "scRNA-seq",
  ref_col = "celltype", query_col = "celltype") +
  ggtitle("Independently")

p_abundances <- (p_abundance + theme(legend.position = "none")) / p_abundance_co
p_abundances

# saveRDS(p_abundances, "results/05_cytof_rnaseq_abundance.rds")
# ggplot2::ggsave(p_abundances, filename = "figs/05_cytof_rnaseq_abundance.png")

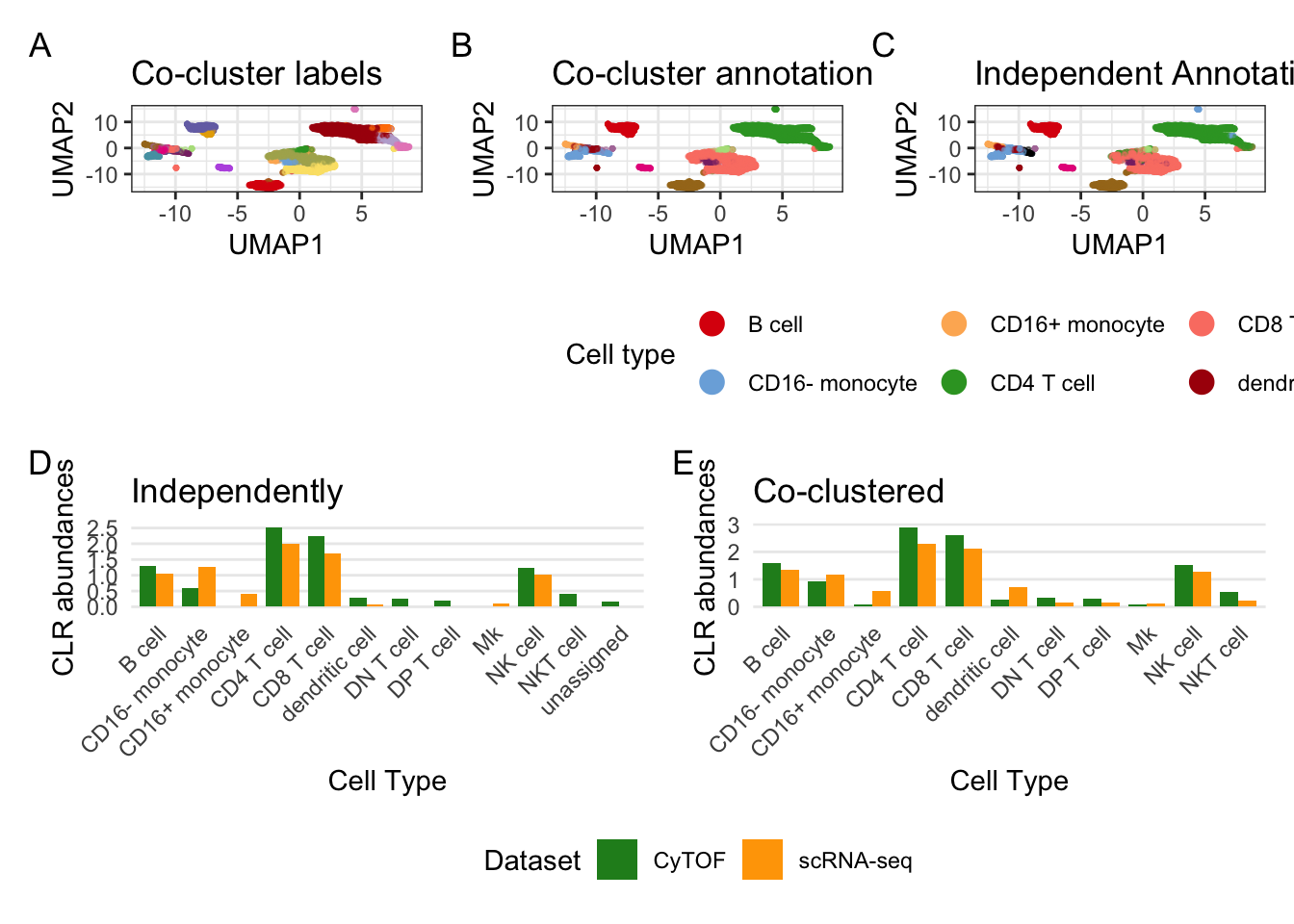

Fig4 <- p_cocluster_annotation / (p_abundance + p_abundance_co + patchwork::plot_layout(guides = "collect") & theme(legend.position = "bottom"))  +
  patchwork::plot_layout(
  design = "
  1111111111
  2222222222
  ") +
  plot_annotation(tag_levels = "A")


Fig4

ggplot2::ggsave(Fig4, filename = "figs/05_annotation_abundance.png", height = 30, width = 30, units = "cm")


Contact
